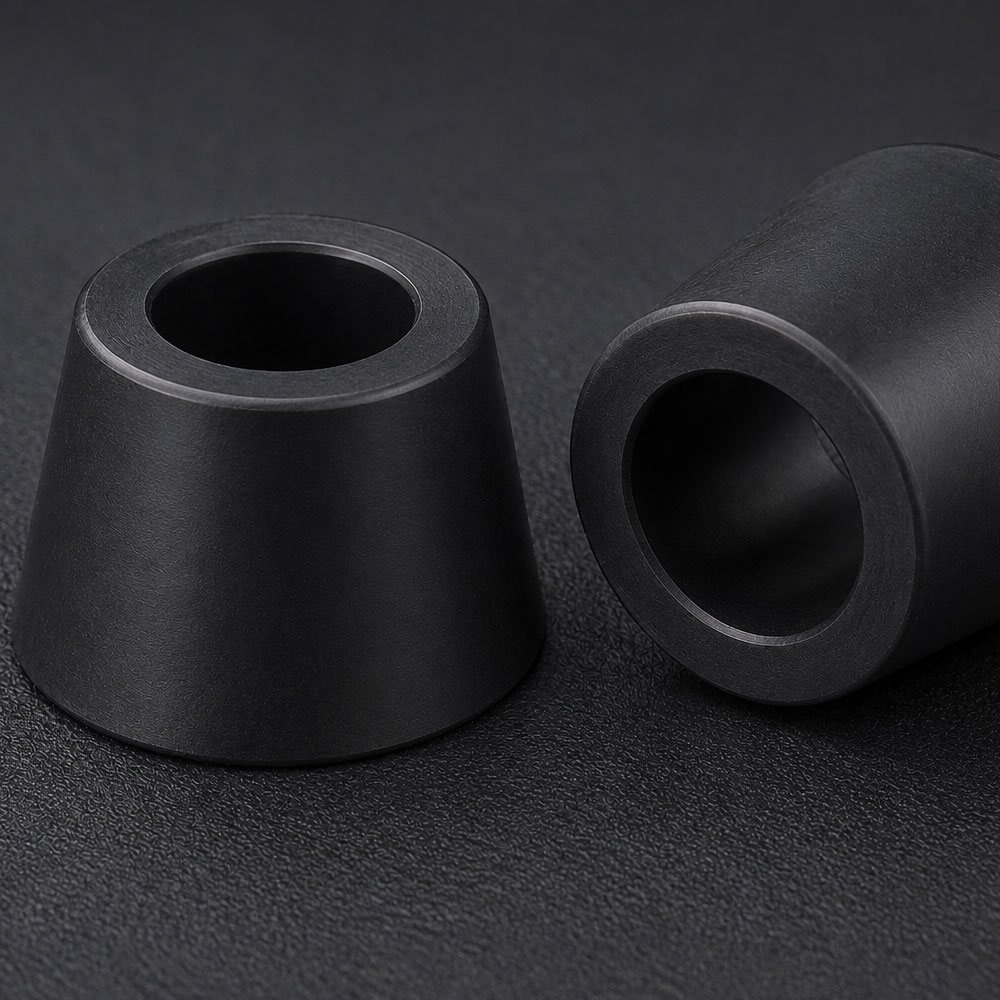

Conical Rubber Bush Manufacturer & Supplier in India

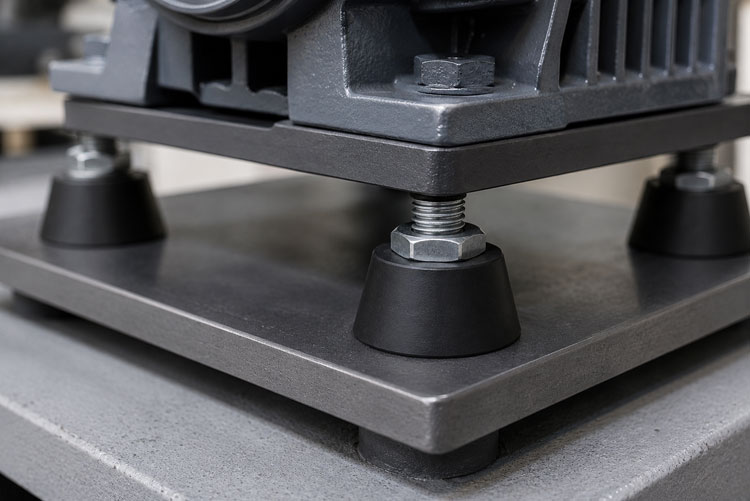

Natural rubber is commonly used where good elasticity, shock absorption, and vibration control are required. NBR can be selected for applications involving oil, grease, or petroleum-based fluids. EPDM is suitable for applications involving water, weathering, and suitable outdoor conditions. Silicone material can be considered where higher-temperature performance, flexibility, and resistance to changing temperatures are important.

The material and hardness should be selected according to the load, movement, temperature, vibration, and working need.

These are manufactured through moulding, with tooling designed around the required taper, bore, outer profile, and height. Controlled moulding helps maintain consistent geometry, dimensions, and material properties. Features such as steps, shoulders, grooves, different bore sizes, and application-specific profiles can be incorporated where required, including conical bush with metal insert configurations.

For correct selection, the inner diameter, larger and smaller outer diameters, height, taper, and mounting arrangement should be specified. The expected load and movement are also important for selecting the appropriate bush.

Application details such as compression, vibration, operating temperature, movement, and exposure to oil, water, or outdoor conditions can help determine the suitable grade and hardness.

Easkay India can develop these from an engineering drawing, CAD model, physical sample, or specified dimensions. Once the design and material are approved, the finalised specification can be maintained for repeat production and regular supply.
