Plastic Bush

Plastic Bush Manufacturer & Supplier in India

Easkay India is a plastic bush manufacturer in India, producing bushes for assemblies that require a defined bore, outside diameter and controlled fit between mating parts. Components are produced in engineering plastics selected according to the mechanical load, sliding condition, temperature, moisture exposure and dimensional needs of the application.

Plastic Bush Specifications & Dimensions

MaterialNylon, HDPE, Delrinl, PTFE, LDPE, PP, ABS and many more.
ConfigurationPlain, cylindrical, flanged or drawing-specific
DimensionsBore, OD and length as specified
ProductionInjection moulded / machined
FeaturesGrooves, shoulders, steps and other profiles
SupplyPrototype, trial and production quantities
Need a custom size or load rating? Send your dimensions →

Bore and outside diameter are controlled according to the mating assembly. Where clearance, interference or sliding fit is critical, the tolerance needed should be included on the drawing.

Plastic Bush Material Selection

Nylon suits many engineering applications needing dimensional stability and mechanical strength. PTFE can be selected where low-friction characteristics or high-temp resistance are important. HDPE, LDPE and PP are available for applications where their specific material properties suit the operating conditions.
Plastic Bush

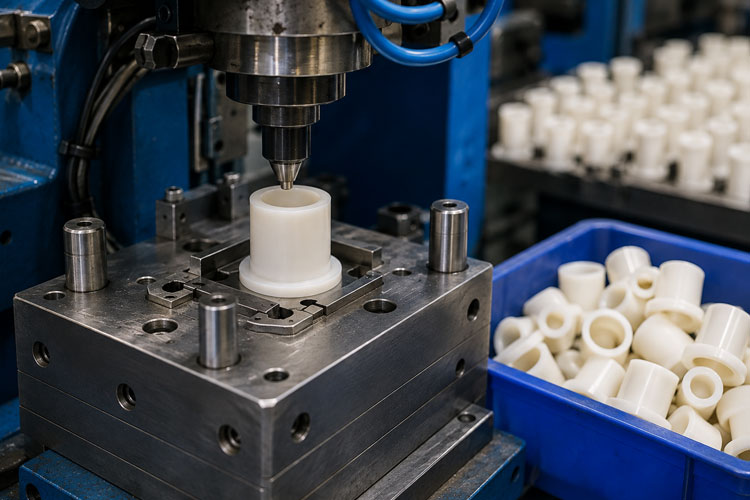

Plastic Bush Manufacturing: Moulding & Machining

Injection moulding is used for repeat geometries and production quantities where tooling is justified. Machined bushes suit development work, lower quantities and components needing features or dimensions produced from solid stock. The manufacturing route is selected based on geometry, materials and quantity.

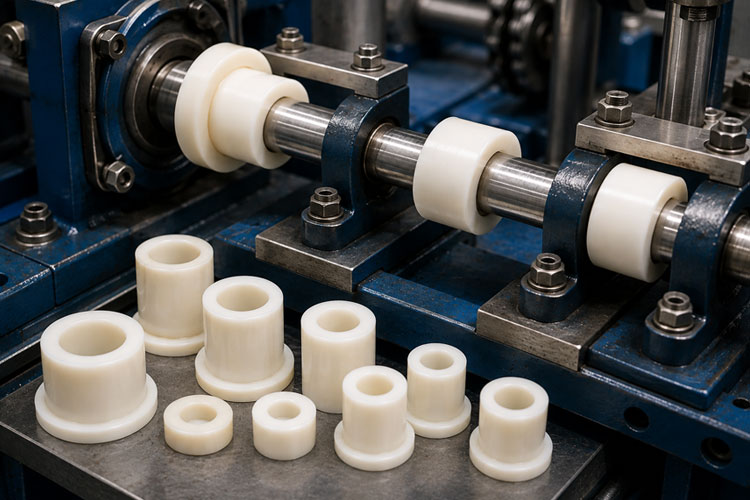

Industrial Applications of Plastic Bushes

These are used as sleeves, spacers, guides and bearing elements in industrial assemblies, machinery, material handling equipment, automotive components, panels and fixtures.
  • .
Plastic Bush

Plastic Bush Development & Supply

Custom bushes are produced based on an engineering drawing, approved sample or CAD model. Flanged bush designs are available, among other profiles. Critical dimensions can be identified for inspection, while the approved material and component specification are retained for subsequent production, particularly useful for OEM parts and recurring orders where dimensional consistency matters.
Have an existing part to match? Send a photo with dimensions →

Related Products

Plastic Washer

Plastic Washer

These washers are used for spacing and insulation, and can be made in custom thickness, diameter & grades.

Used in: General Machinery, Electronics

View Details
Plastic Cap

Plastic Cap

Protective caps for tubes and fittings, rigid grades in standard and custom sizes.

Used in: Machinery & Equipment

View Details
Plastic Pin

Plastic Pin

These pins can be used for masking and fastening, and can be designed according to the drawing or sample.

Used in: General Machinery

View Details
Platic Plug

Plastic Plug

These plugs can be used for sealing holes and ports and can be manufactured in variety of sizes and colours.

Used in: Machinery & Equipment

View Details

Frequently asked questions

They're sleeve components fitted between mating parts to provide a controlled bore, guide movement and reduce direct contact, used as sleeves, spacers, guides and bearing elements across industrial assemblies, machinery, material handling equipment and panels. They're common wherever a non-metallic component is specified for weight, corrosion or lubrication reasons.

Material is selected against mechanical load, sliding condition, temperature, moisture exposure and dimensional requirements. Nylon suit applications needing dimensional stability and mechanical strength. PTFE is a good choice where low friction or high temp resistance matters, while HDPE and other grades are available where their specific properties meet the operating conditions.

The bore and outside diameter are controlled according to the mating assembly rather than a nominal size, produced to the tolerance stated on the drawing. Where clearance, interference or sliding fit is critical, that should be included so the finished component can be checked against it.

Both routes are available, chosen based on geometry, materials and quantity. Injection moulding suits repeat geometries where tooling is justified, while machining suits development work, lower quantities and components needing features produced from solid stock.

Yes. Custom bushes are produced from an engineering drawing, approved sample or CAD model. Flanged designs and other profiles, including grooves, shoulders and steps, are produced against the specification, with approved dimensions retained for repeat supply.
