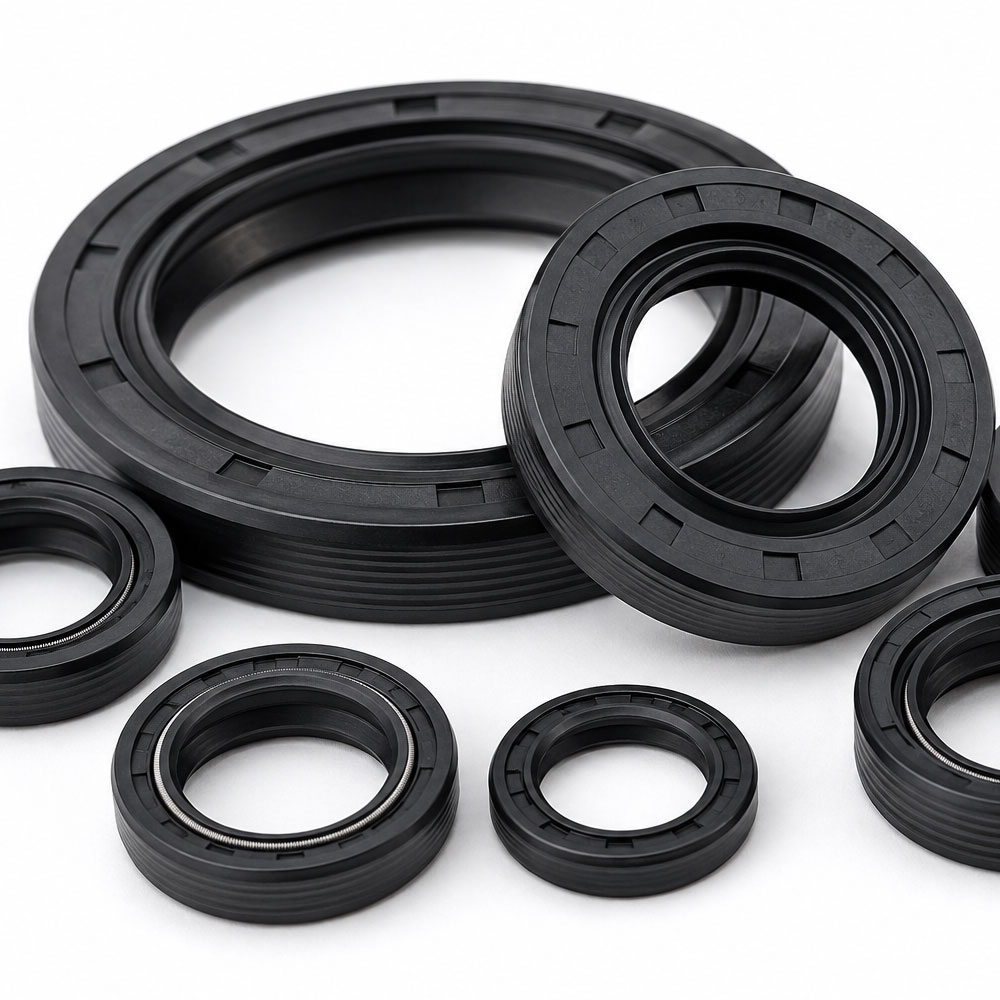

Rubber Oil Seal Manufacturer & Supplier in India
Easkay India manufactures and supplies rubber oil seals in India for rotating shafts and mechanical assemblies where leakage control and protection from contaminants are required. These are used in automotive, industrial, hydraulic, agricultural, material handling and general engineering applications.
We manufacture rubber oil seals in NBR and FKM/Viton, with different sizes, lip configurations and spring arrangements. Custom designs can be developed from an engineering drawing, physical sample or specified measurements.
Oil Seals Specifications & Dimensions
The main specifications are the shaft diameter, housing bore diameter and width. The sealing lip, outer profile, spring arrangement and material are selected according to the application.
Oil Seal Material Selection
NBR is commonly used for general oil, grease and petroleum-based applications. It provides a practical solution for many industrial and automotive sealing requirements.
FKM/Viton is suitable for more demanding applications involving higher temperatures, fuels, oils and certain chemicals.
Material selection should consider the lubricant, operating temperature, shaft speed, pressure and working environment.
Rubber Oil Seal Manufacturing
Easkay India manufactures rubber oil seals through moulding, using tooling designed for the required specification and sealing profile. Features such as the sealing lip, spring location, outer profile and other application-specific details can be incorporated into the design.
These are available with an inside or without an inside spring, depending on the required sealing arrangement.
For non-standard requirements, we can develop the product from a physical sample, engineering drawing or dimensional specification.
Oil Seal Size & Fit Requirements
Correct selection depends on the dimensions of the mating components. The shaft diameter, housing bore and width should be measured accurately before ordering.
Details such as shaft speed, lubricant type, operating temperature, pressure, direction of rotation and environmental conditions are also useful for selecting the appropriate profile and material.
Custom Oil Seal Development
Easkay India can develop these parts from an engineering drawing, CAD model, physical sample or specified dimensions. An existing part can be evaluated to identify its critical dimensions, sealing lip design, outer profile and retaining mechanism.
Once the specifications are approved, the same reference can be maintained for repeat production and regular supply.

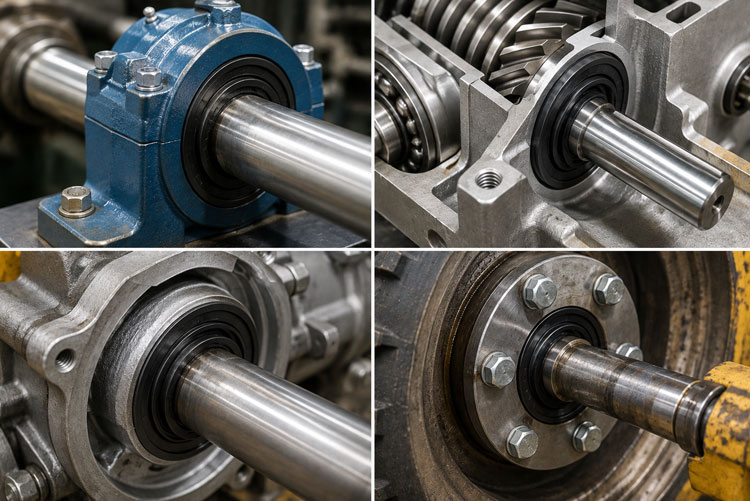

Industrial Applications of Oil Seals
These are used in
- Automotive engines and transmissions
- Gearboxes and reduction units
- Pumps and electric motors
- Hydraulic equipment
- Agricultural machinery
- Construction equipment
- Conveyor and material handling systems
- Industrial machinery
They help retain lubricants and reduce the entry of dust, dirt and other contaminants around rotating shafts.
Related Products

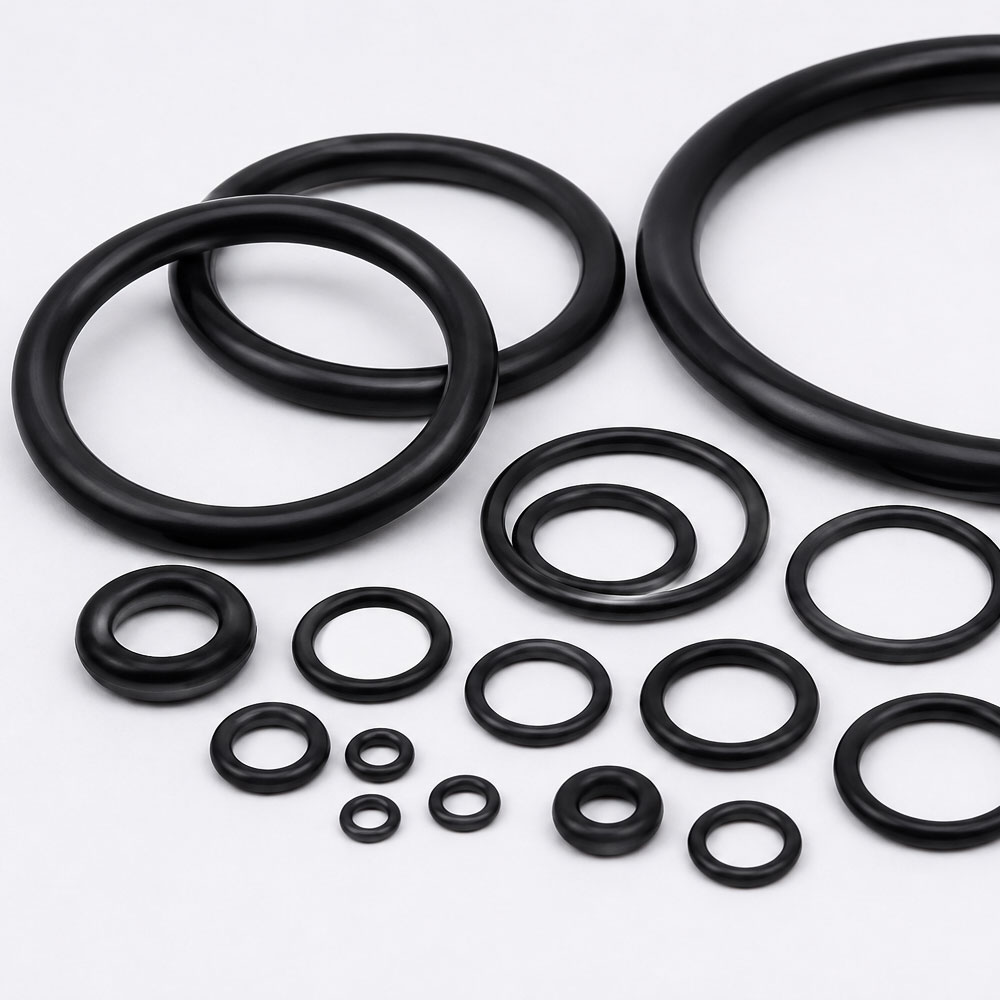

O-rings
Precision moulded sealing rings for static and dynamic sealing in hydraulic and pneumatic systems.
Used in: Hydraulics, Pneumatics, Automotive

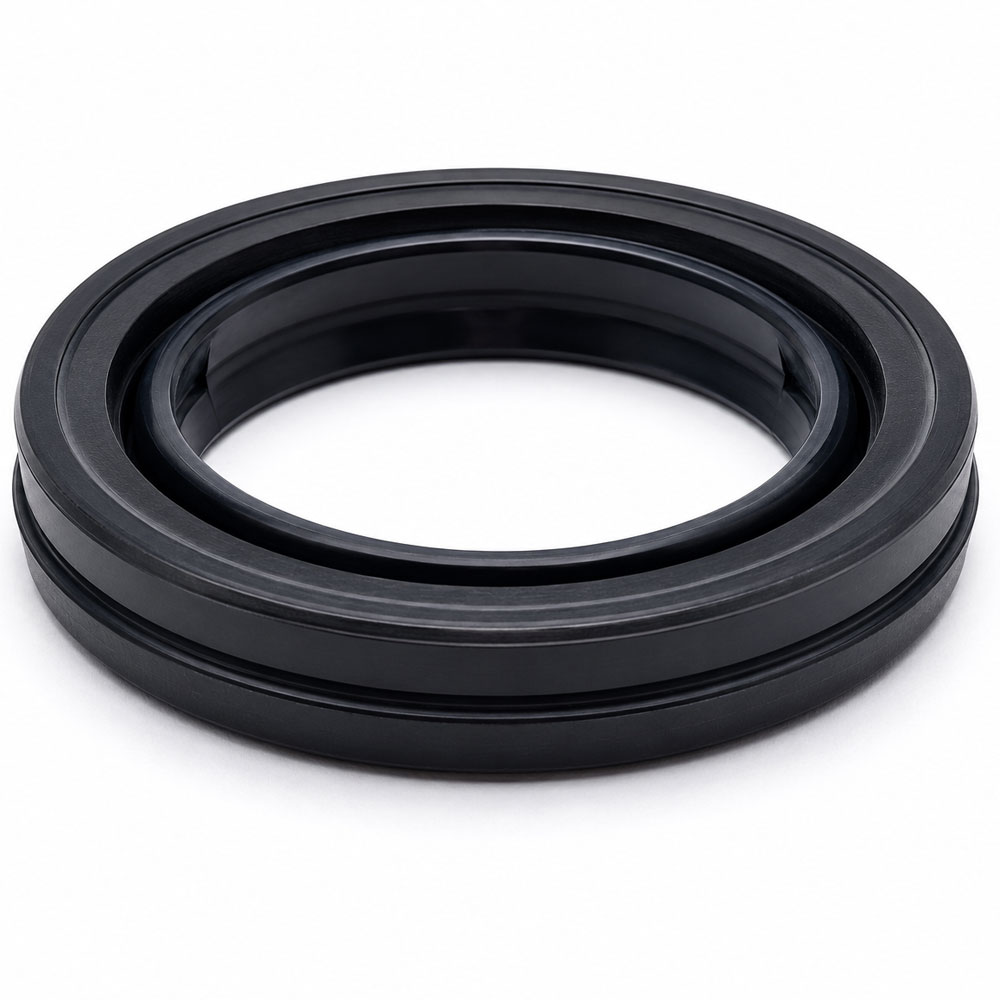

Piston Seals
Wear-resistant seals for hydraulic and pneumatic cylinder pistons under repeated cycling.
Used in: Hydraulics, Industrial Machinery

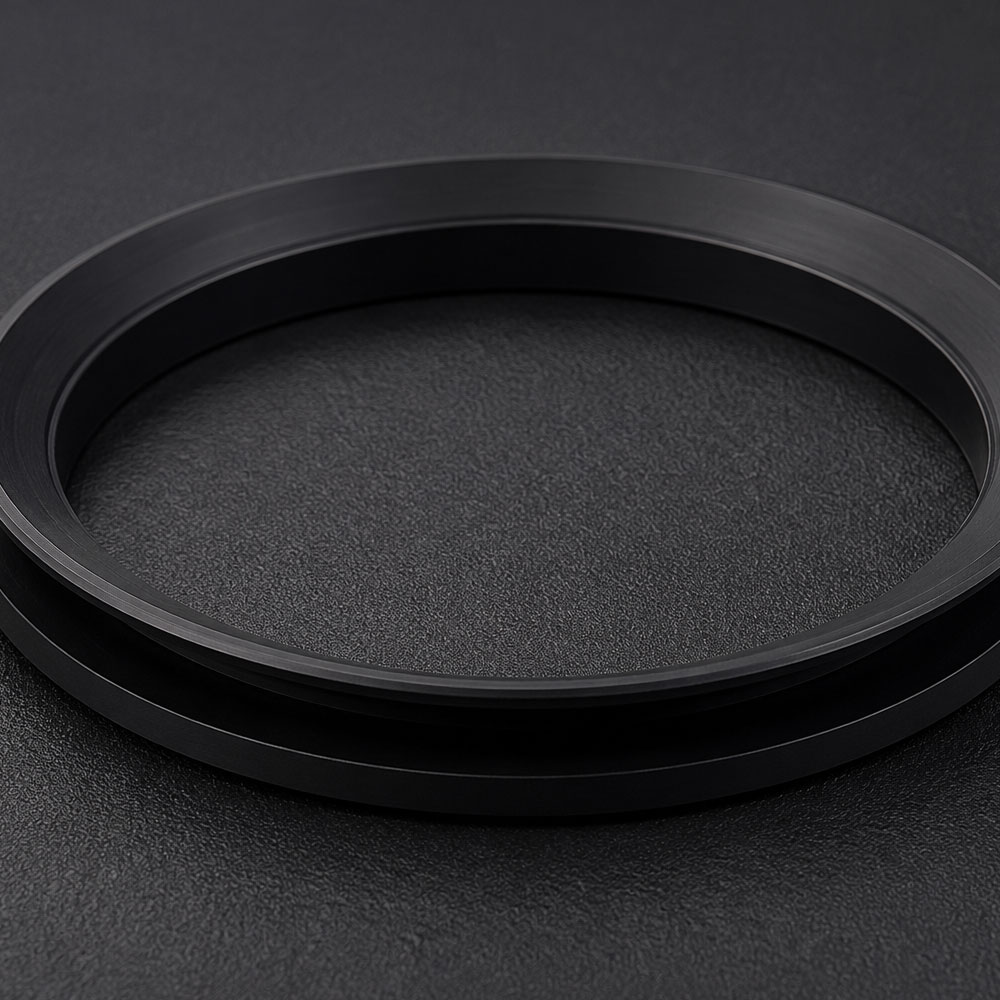

Rubber V Lip Seals
V-profile lip seals built for higher-pressure sealing than a standard lip seal.
Used in: Hydraulics, Heavy Machinery

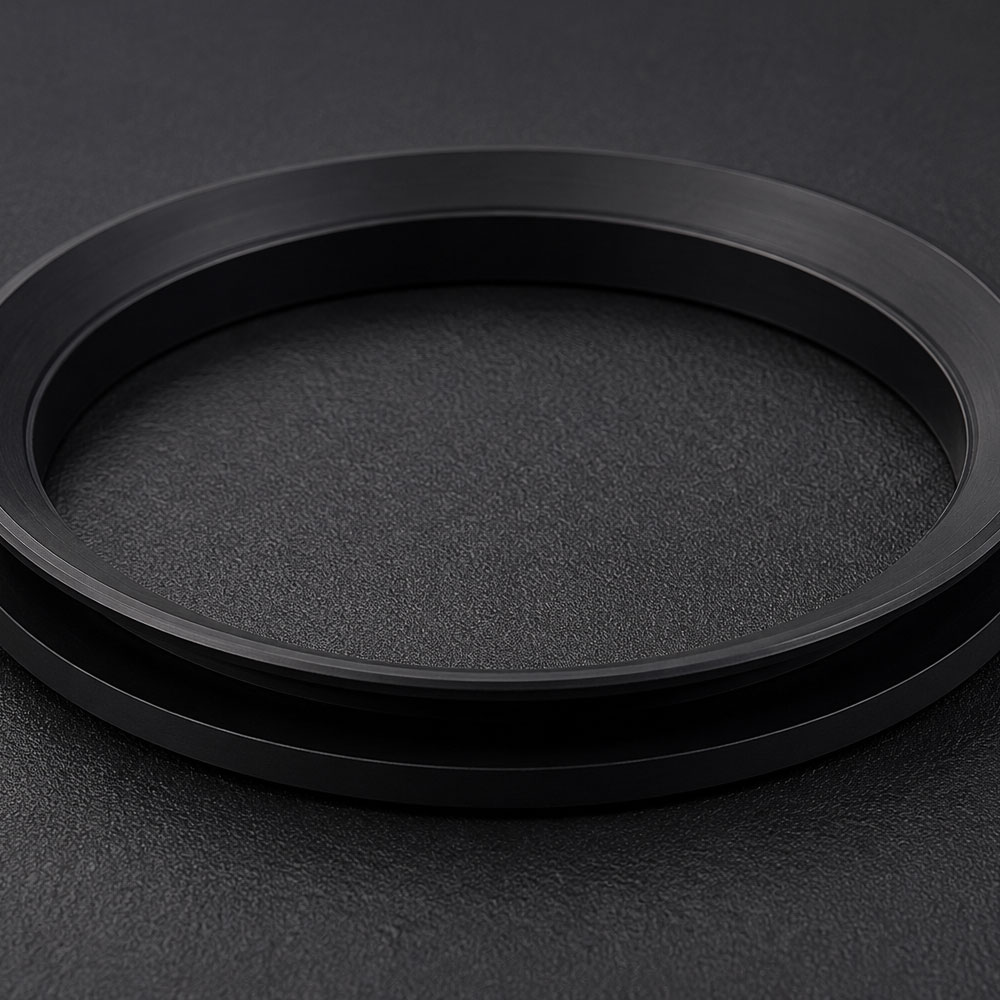

Rubber Lip Seals
General-purpose lip-profile seals for shaft and housing sealing applications.
Used in: General Machinery
